SPECIFICATIONS

5G NR: Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78

5G NR 3GPP: Release 15

5G NR Download MIMO: SISO,2*2,4*4

5G NR Download Modulation: QPSK, 16QAM,64QAM,256QAM

5G NR Peak Download Speed: 4.67 Gbps

5G NR Peak Upload Speed: 1.25 Gbps

5G NR Upload MIMO: SISO,2*2

5G NR Upload Modulation: QPSK, 16QAM,64QAM,256QAM

Antenna Type: Internal

Application: Home

Brand Name: Tenda

Cellular Technologies: 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA

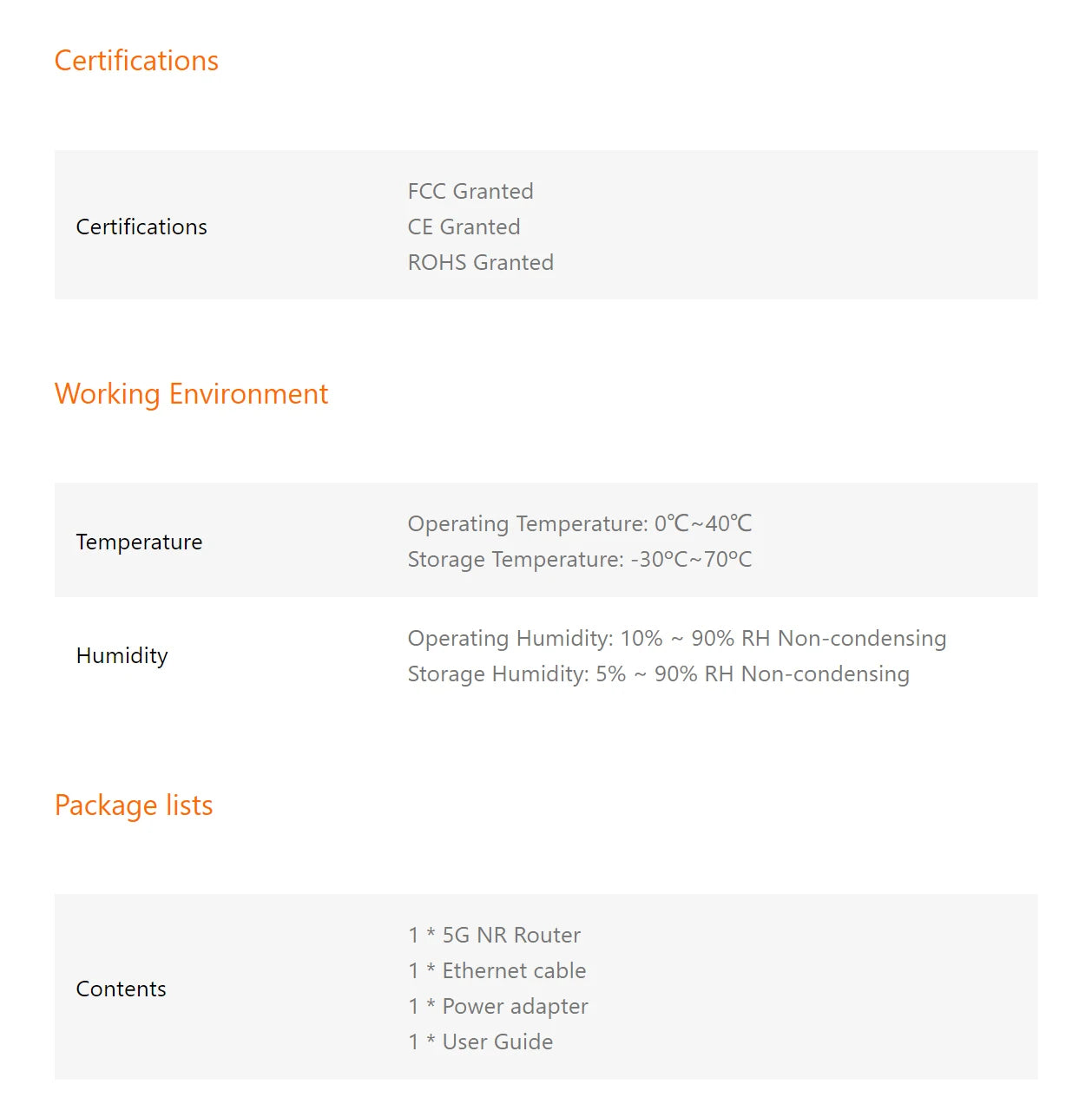

Certifications: FCC/CE/ROHS

Choice: yes

Ethernet Ports: one 10/100/1000 Mbps LAN/WAN Port, one 10/100/1000 Mbps LAN Port

FDD-LTE: Bands 1, 3, 5, 7, 8, 20, 28, 32

Frequency: 2.4 GHz

Frequency Band Class: Dual-Band

High-concerned chemical: None

LAN Ports: 1

Origin: Mainland China

Package: Yes

Processor: 7nm, Quad cores, core frequency 2 GHz

Recommended Uses: Home

SIM Card: Nano SIM (4FF)

Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac

Support Mesh: Support

Supports WPS: Yes

TD-LTE: Bands 38, 40, 41, 42, 43

Type: WireLess

WCDMA: 850, 900, 2100 MHz

Wi-Fi Supported Frequency: 2.4G & 5G

Wi-Fi security: WPA2/WPA3,WPA/WPA2,WPA2-PSK,WPA-PSK,WEP

Wi-Fi speed: 574Mbps on 2.4 GHz, 1201Mbps on 5 GHz

Wired Transfer Rate: 10/100/1000Mbps

Wireless Communication Standard: 802.11.ax

Wireless Connectivity: Wi-Fi 6 (802.11ax) with 2x2 MIMO

Wireless transmission rate: 1800M

With Modem Function: No

semi_Choice: yes

Attention please:

the following is the description of AX1800 version. For the description of AX1500 version, please refer to this link: https://www.tendacn.com/product/5G01.html

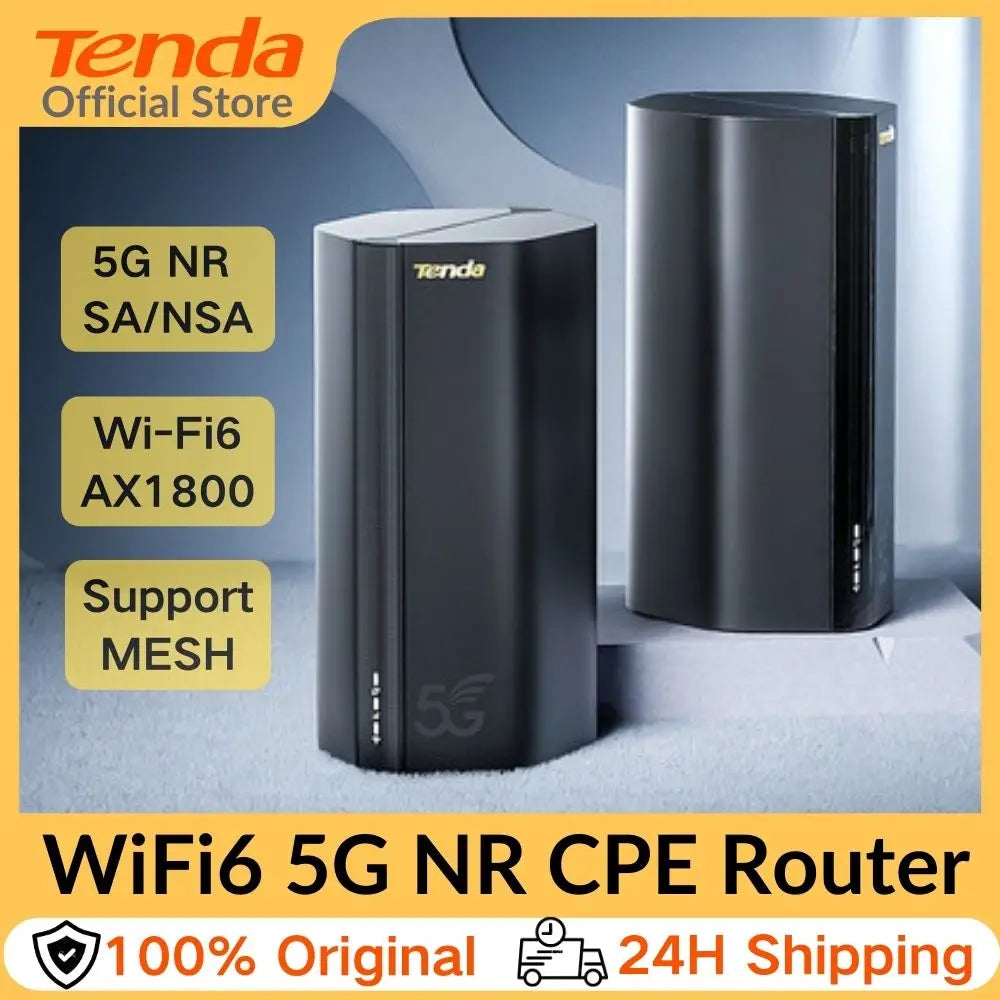

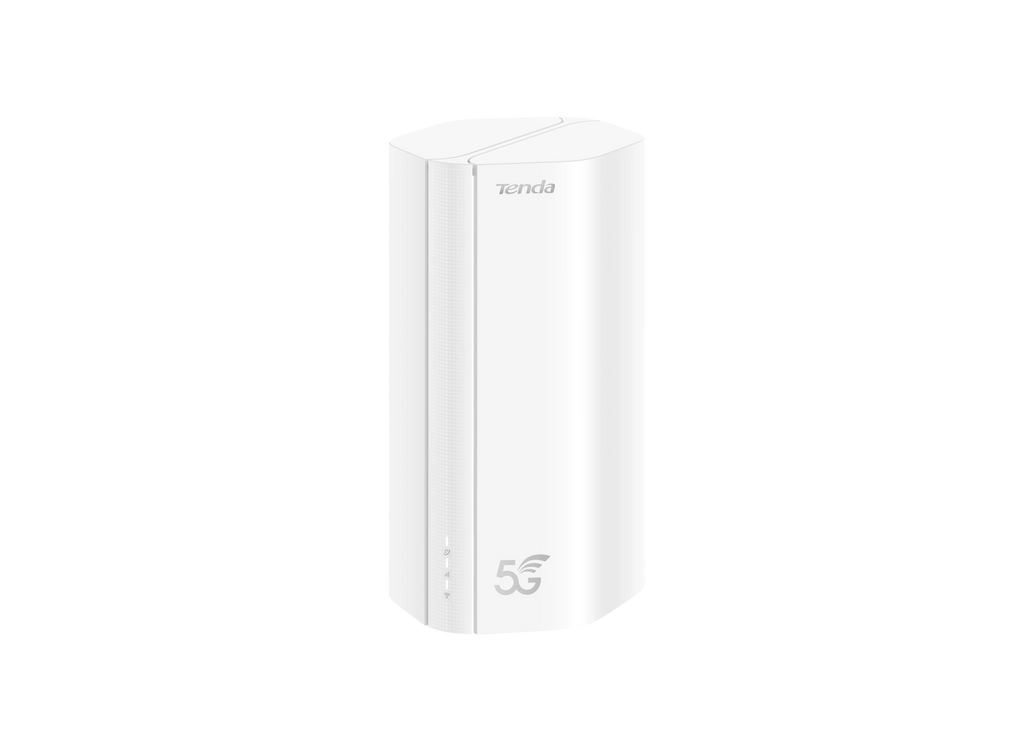

All new 5G network, fast WiFi6 and exceptional smart system. With all the new techs, now, introducing 5G03, the innovative Internet access entrance for you, most advanced geek pioneers, and the most advanced internet experience for you. Also, 5G03's deep black and delicate design of texture and highlight on the surface take our progressive geek philosophy to a new dimension.

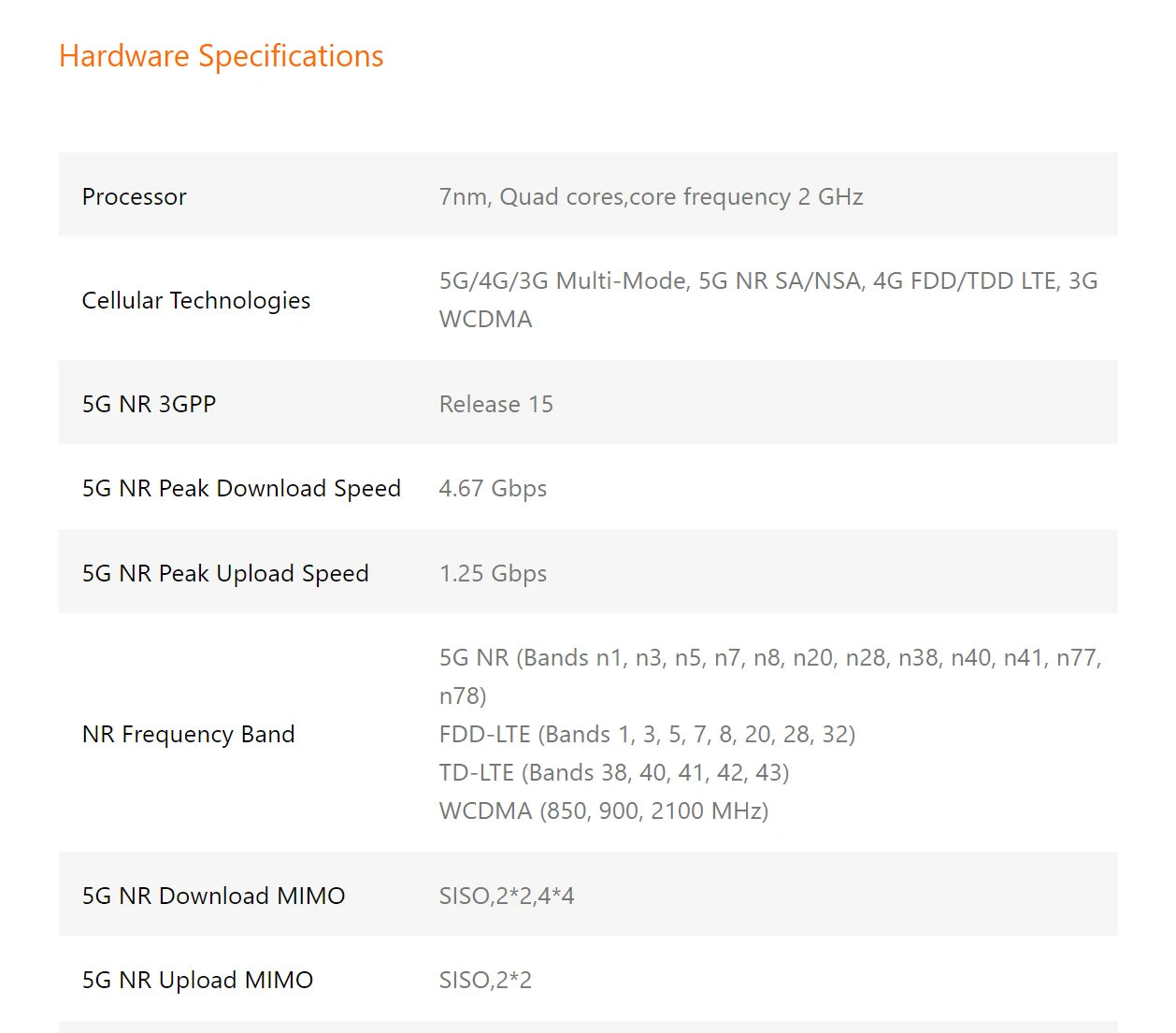

Specifications:

• Processor: 7nm, Quad cores,core frequency 2 GHz

• Cellular Technologies: 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA

• 5G NR 3GPP: Release 15

• 5G NR Peak Download Speed: 4.67 Gbps

• 5G NR Peak Upload Speed: 1.25 Gbps

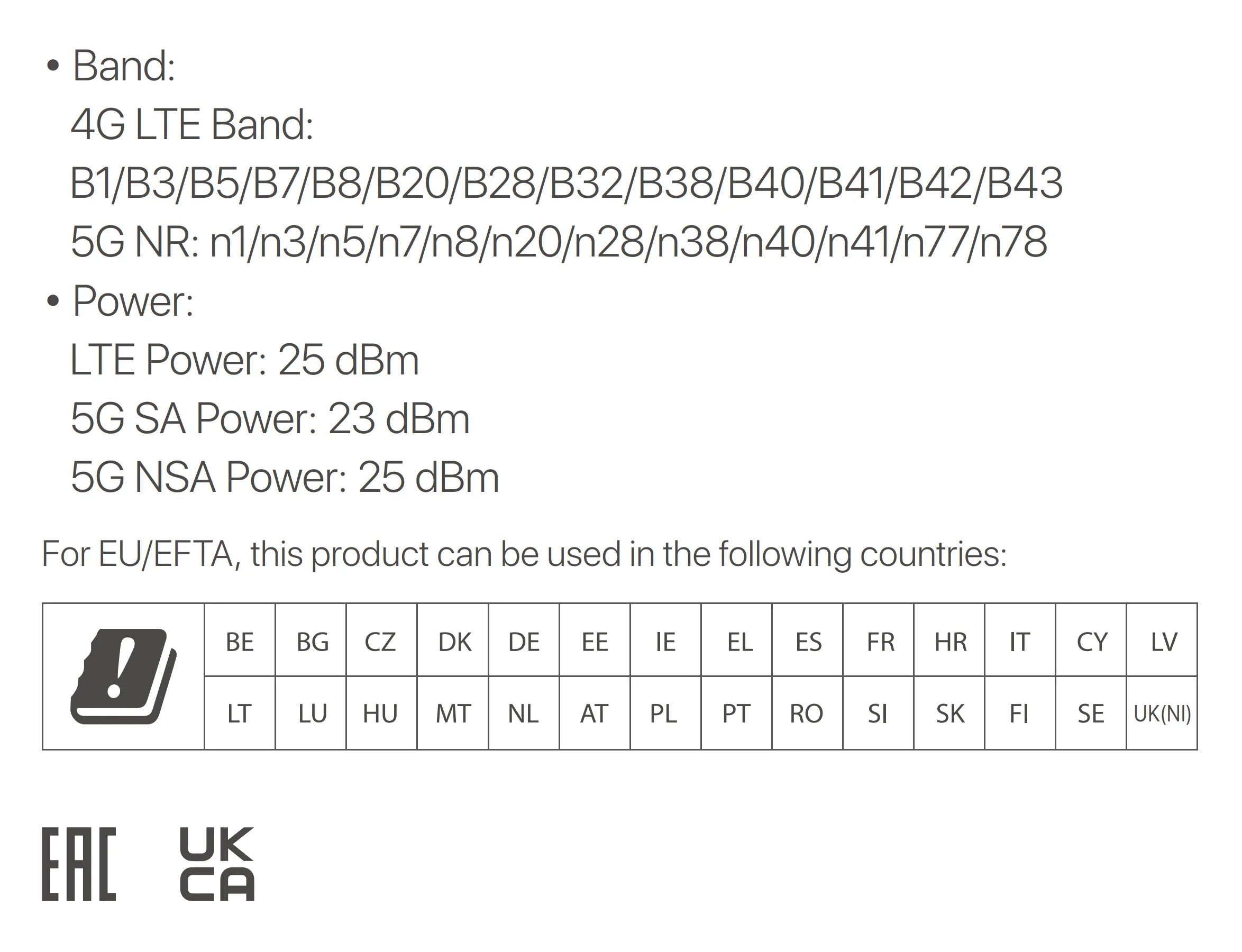

• NR Frequency Band


• 5G NR (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78)

• FDD-LTE (Bands 1, 3, 5, 7, 8, 20, 28, 32)

• TD-LTE (Bands 38, 40, 41, 42, 43)

• WCDMA (850, 900, 2100 MHz)

• 5G NR Download MIMO: SISO,2*2,4*4

• 5G NR Upload MIMO: SISO,2*2

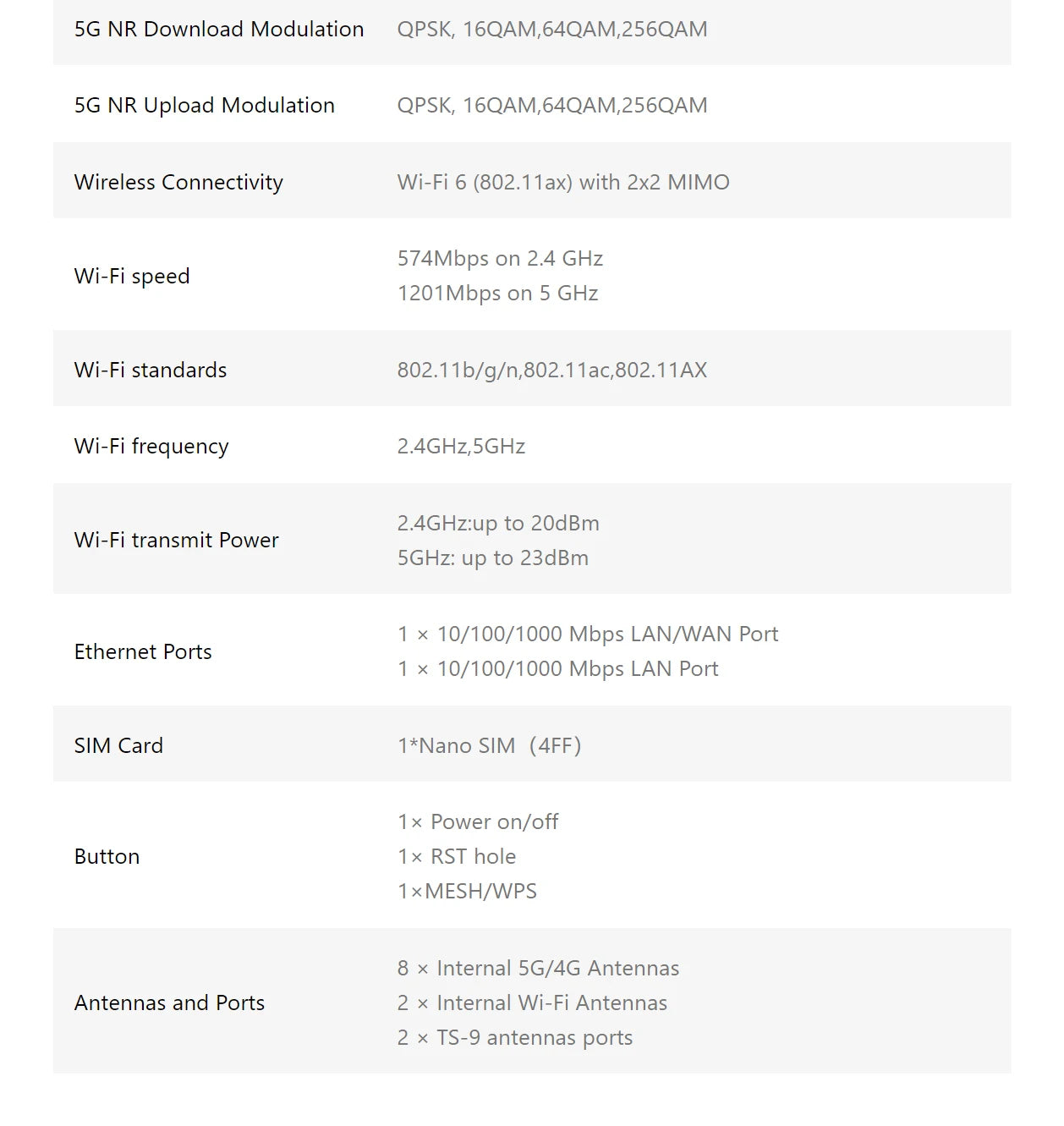

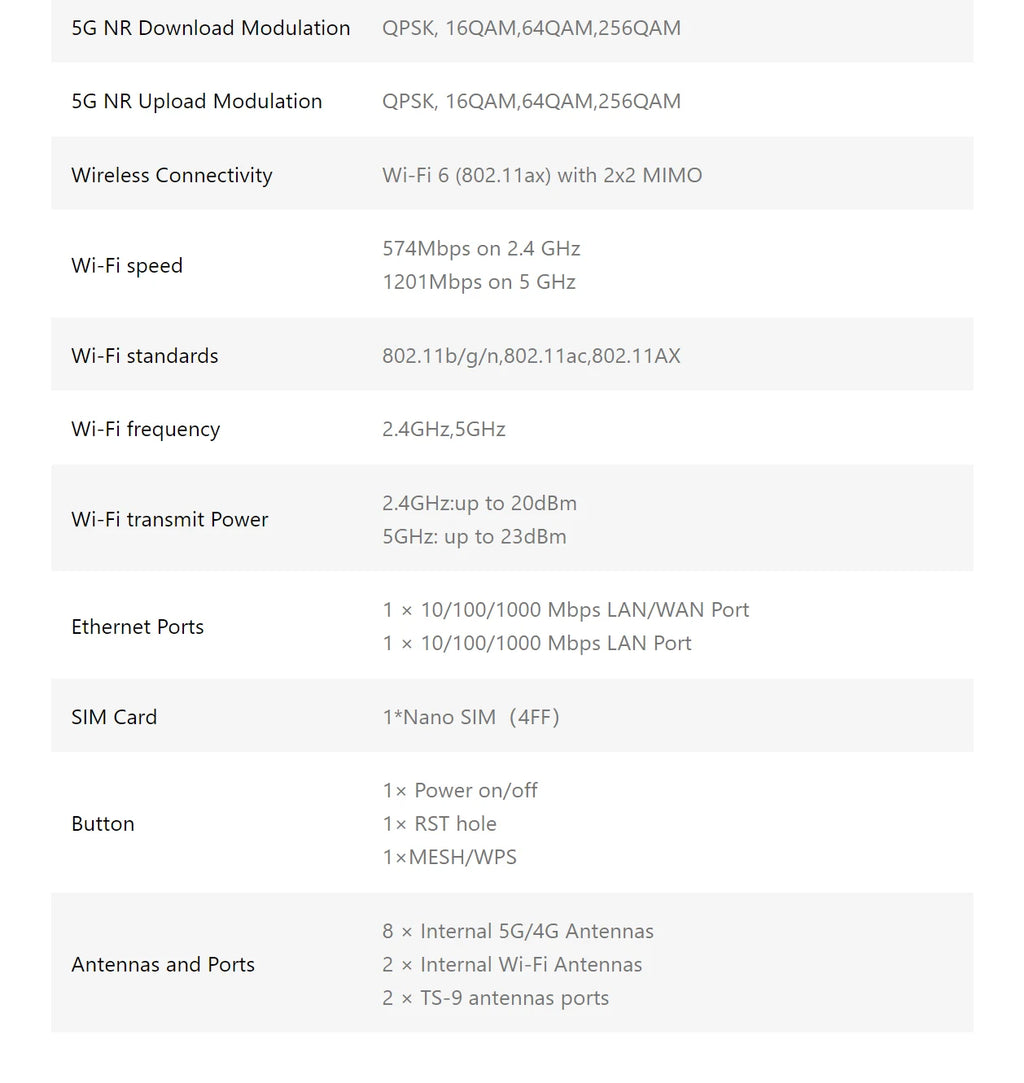

• 5G NR Download Modulation: QPSK, 16QAM,64QAM,256QAM

• 5G NR Upload Modulation: QPSK, 16QAM,64QAM,256QAM

• Wireless Connectivity: Wi-Fi 6 (802.11ax) with 2x2 MIMO

• Wi-Fi speed :574Mbps on 2.4 GHz & 1201Mbps on 5 GHz

• Wi-Fi standards: 802.11b/g/n,802.11ac,802.11AX

• Wi-Fi frequency: 2.4GHz,5GHz

• Wi-Fi transmit Power: 2.4GHz:up to 20dBm; 5GHz: up to 23dBm

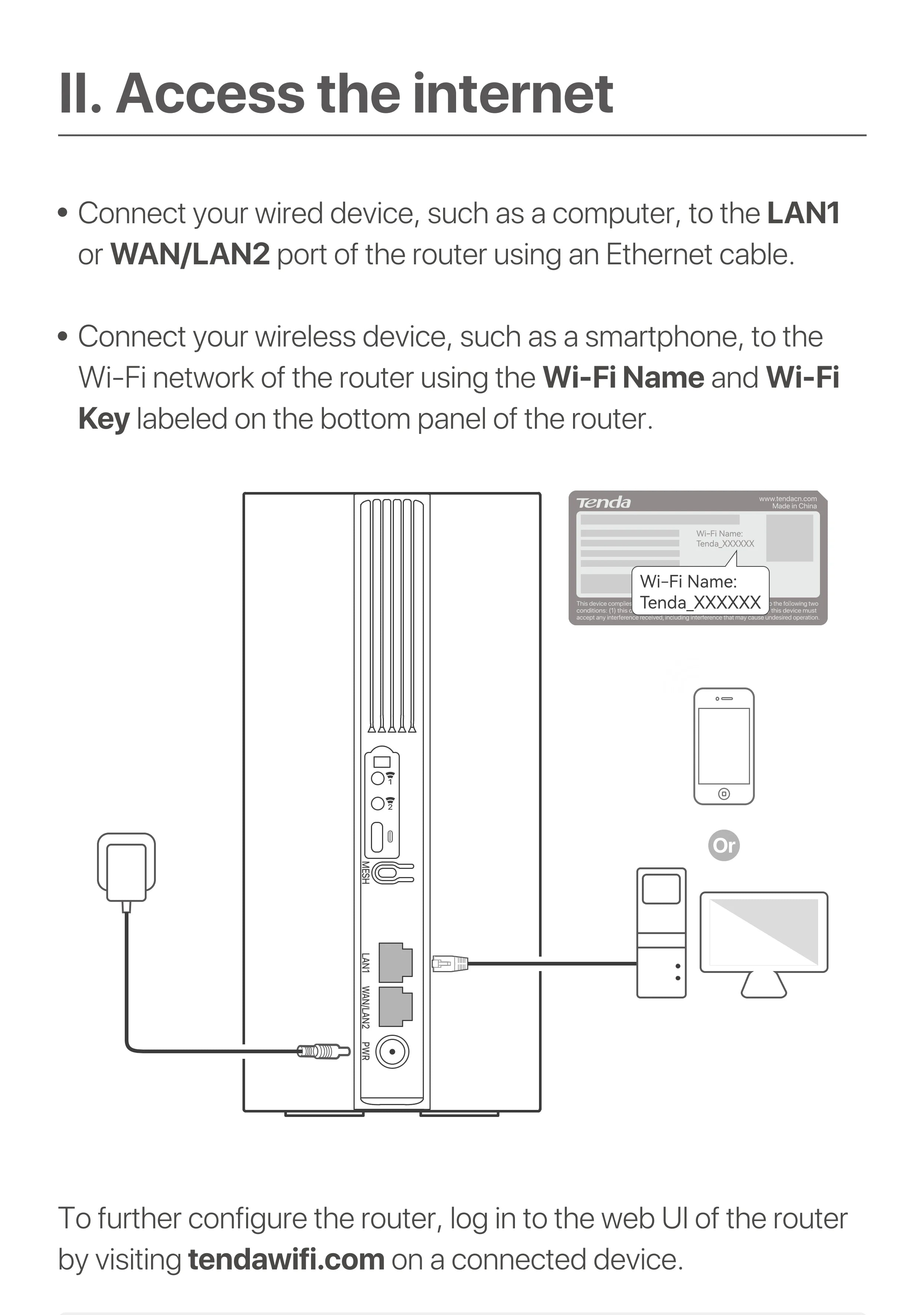

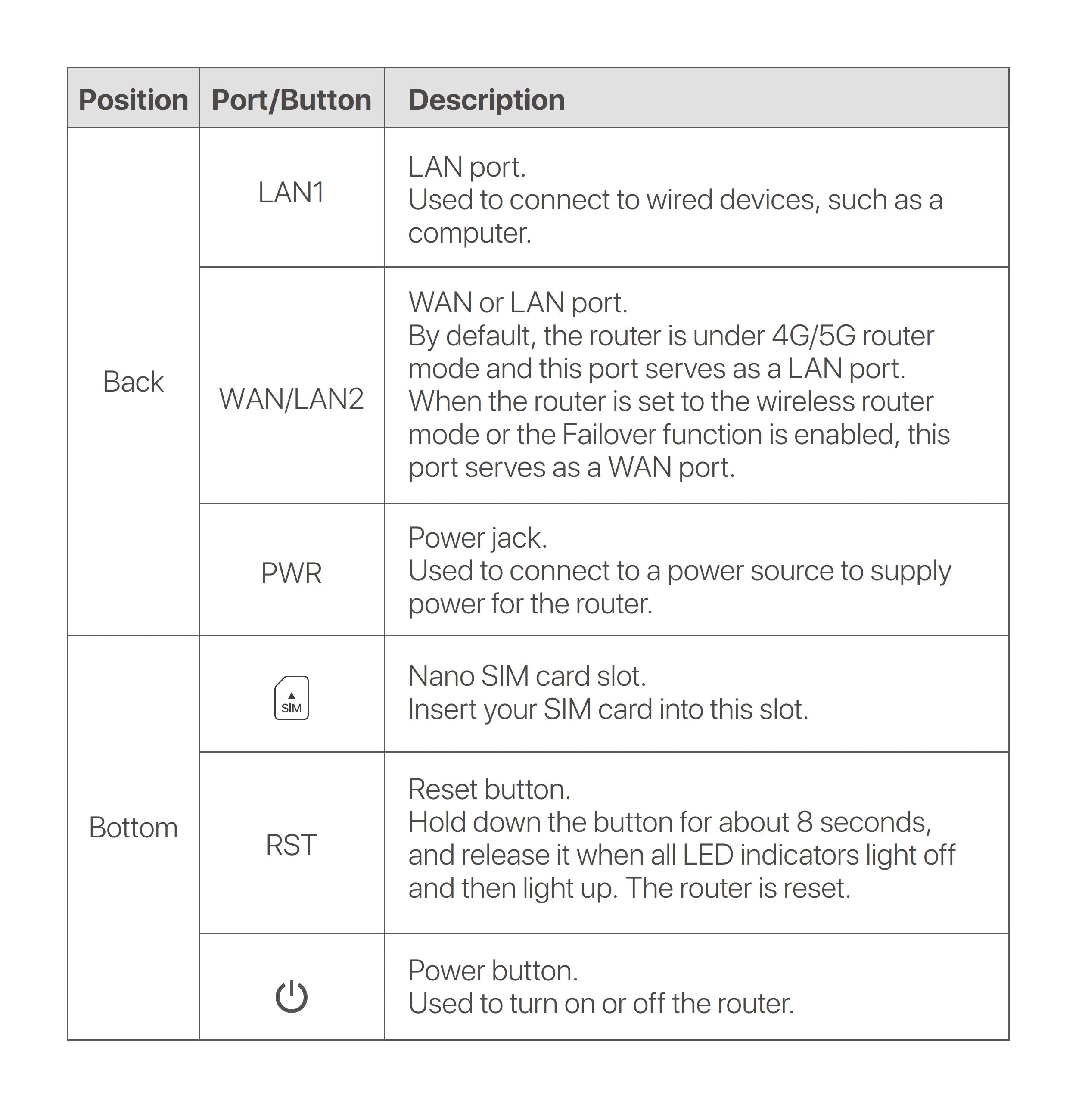

• Ethernet Ports: 1 × 10/100/1000 Mbps LAN/WAN Port * 1 × 10/100/1000 Mbps LAN Port

• SIM Card: 1*Nano SIM（4FF）

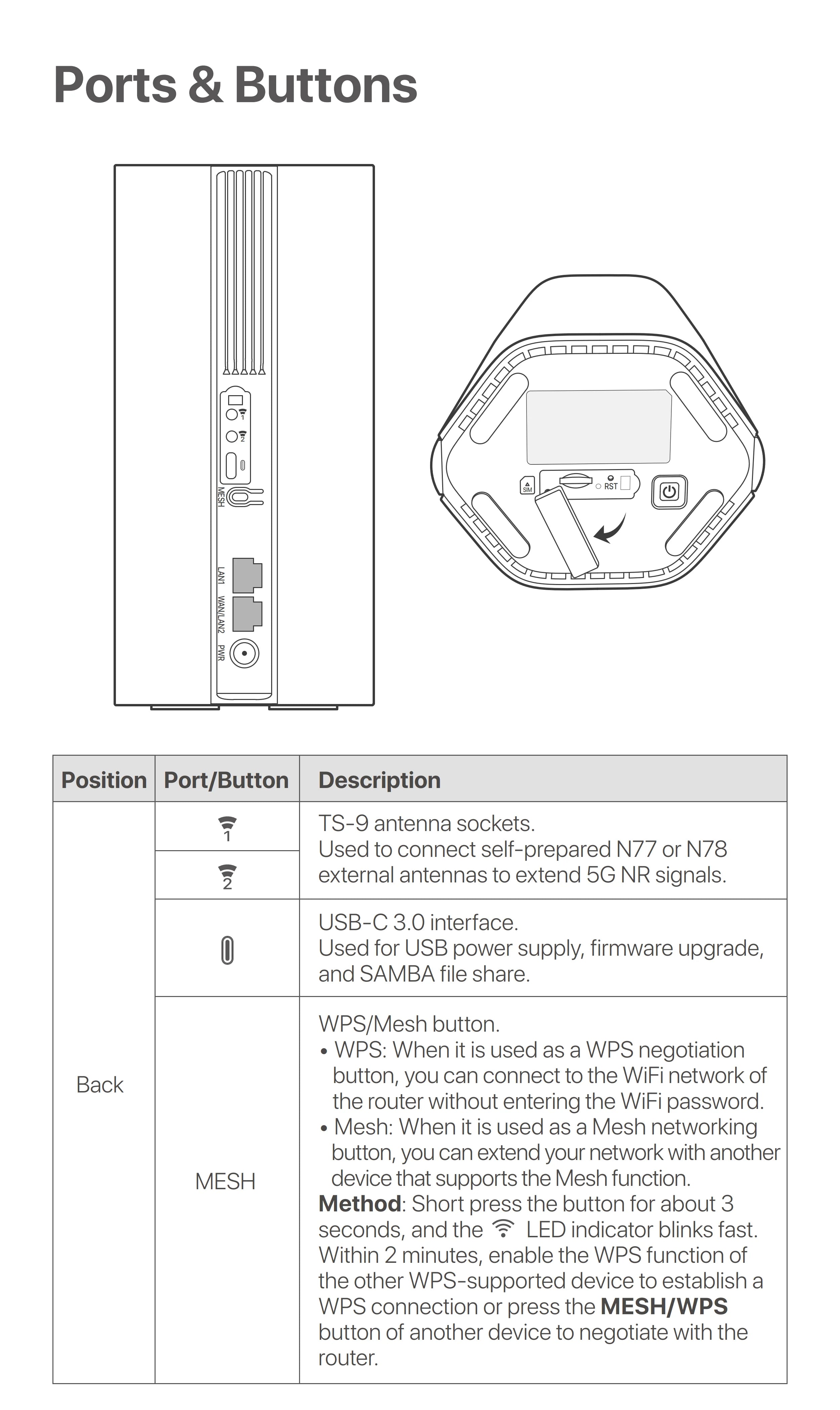

• Button: 1× Power on/off; 1× RST hole; 1×MESH/WPS

• Antennas and Ports: 8 × Internal 5G/4G Antennas; 2 × Internal Wi-Fi Antennas; 2 × TS-9 antennas ports

Notice:

• All our products are global version with multi-language options in the settings page, and our products come with Original EU plug, if you need a US/UK/AU plug adapters, you can leave a message for us after you place the order and we will send the adapter free of charge.

• This router supports more than 1000+ Internet Service Providers around the globe, but to make sure it works in your area, please check the Frequency Band of this router in the specification part and confirm with your internet service provider.

•

5G03 is an innovative Internet access entrance. The dramatically powerful 5G network. The WiFi6, extremely fast and furious. Exceptional smart system, every interaction feels smart again. All for you, most advanced geek pioneers.

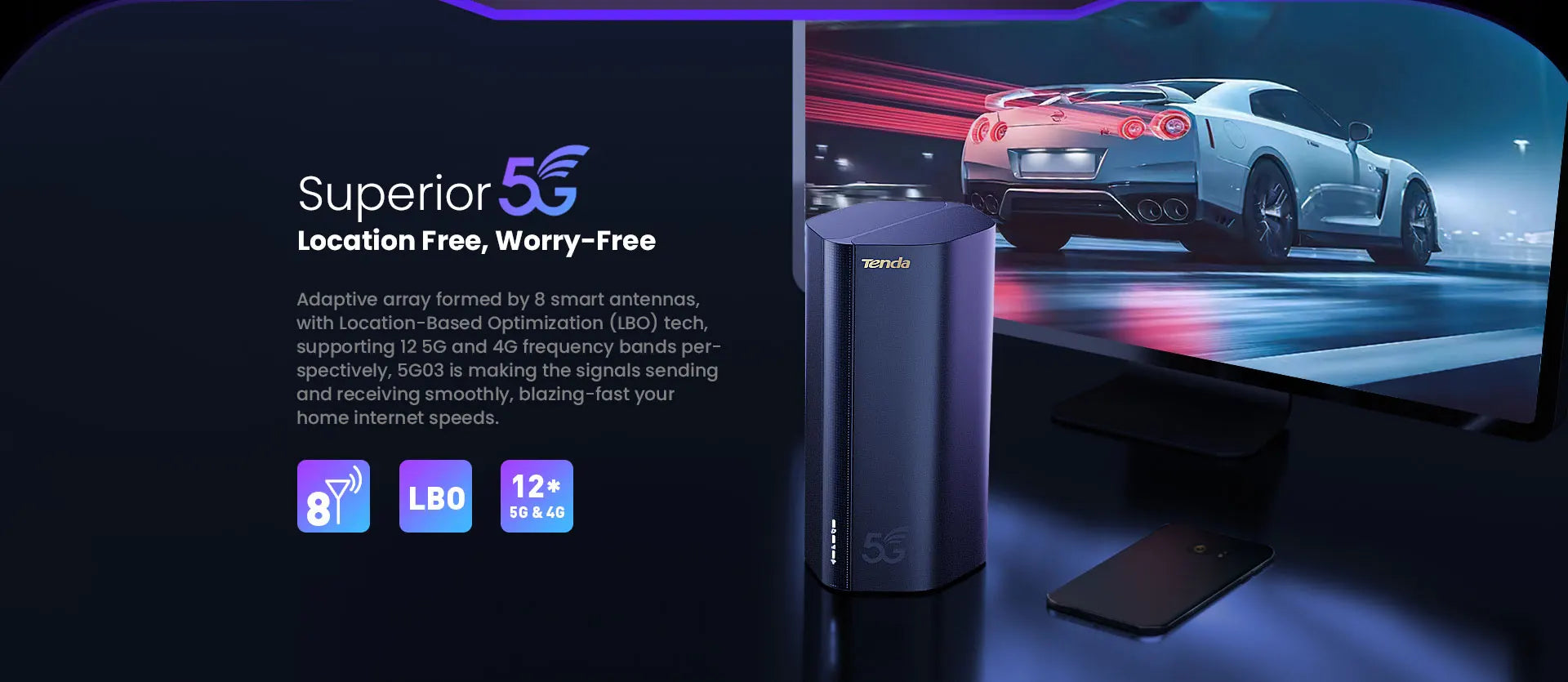

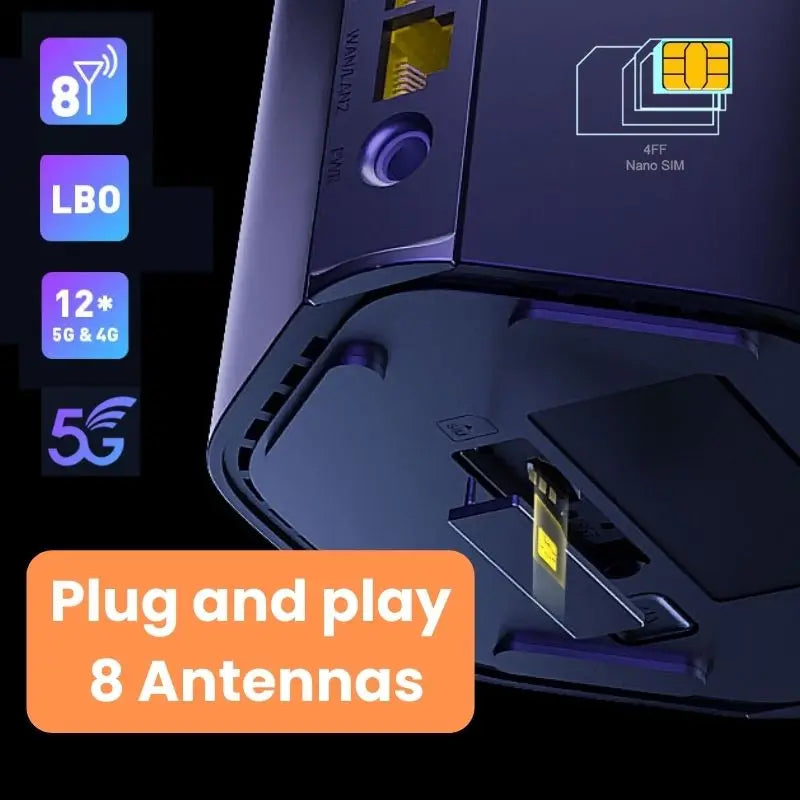

[ Superior 5G - Location Free, Worry-Free ] Adaptive array formed by 8 smart antennas, with Location-Based Optimization (LBO) tech, supporting 12 5G and 4G frequency bands perspectively, 5G03 is making the signals sending and receiving smoothly, blazing-fast your home internet speeds.

[ Gigabit Downloading,
Mega Joy ] 7nm advanced process chip with 4 cores CPU, supporting 4 carrier aggregations, 5G03's downloading speed is reaching 4.67 Gbps theoretically. No wires, no strings.

[ Super Uploading,
Living and Streaming ] Through Super Uplink solution, 5G03 brings you the high speed of uploading over 1.25 Gbps theoretically with the latency of less than 10ms. the uplink resources of 2 bands are fused to increase the uplink rate up to 1.25Gbps, the time delay is less than 10ms, no delay for HD live broadcast and no lag for video call.

[ 5G Slicing for
Gaming and
Watching ] With 5G Slicing tech, 5G03 can smartly diagnose and choose exclusive Gaming or Watching mode. Smooth switch and smooth experience.

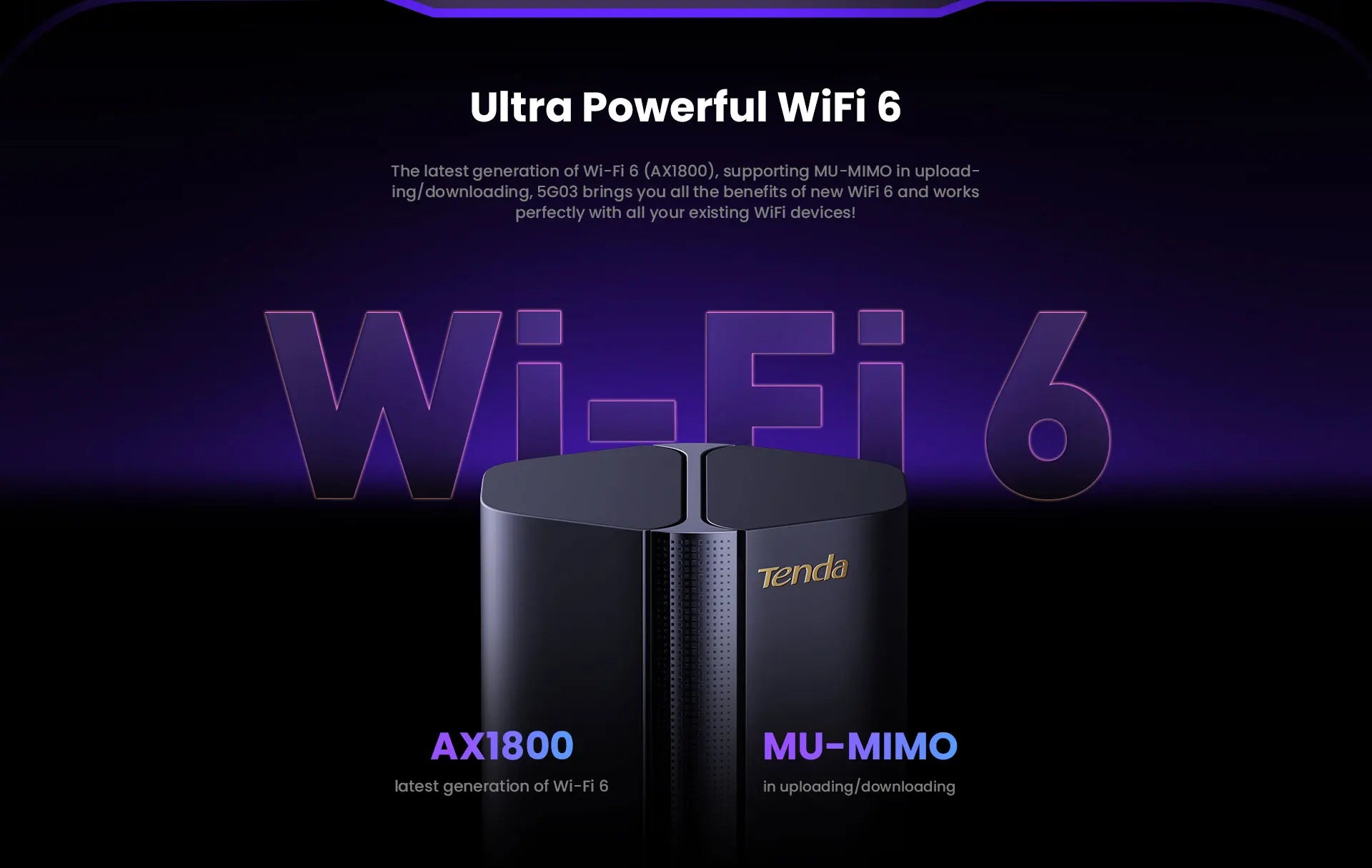

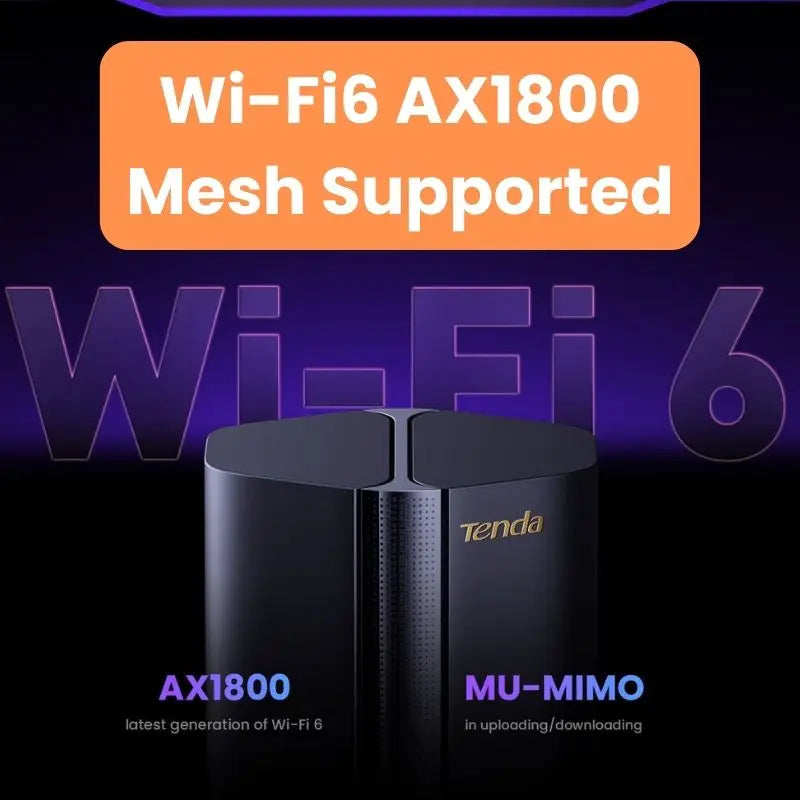

[ Ultra Powerful WiFi 6 ] The latest generation of Wi-Fi 6 (AX1800), supporting MU-MIMO in uploading/downloading, 5G03 brings you all the benefits of new WiFi 6 and works perfectly with all your existing WiFi devices!

[ Up to 128 Devices, Connect Equally ] With OFDMA technology and BSS Coloring mechanism, 5G03 allows you to connect up to 128 devices simultaneously, sharing your happy hours with your friends together!

[ WPA3, New-Gen Security Protocol ] Equipped with the next-generation Wi-Fi security standard WPA3, 5G03 increases the algorithm and network password cracking difficulty, protecting your privacy in open Wi-Fi networks.

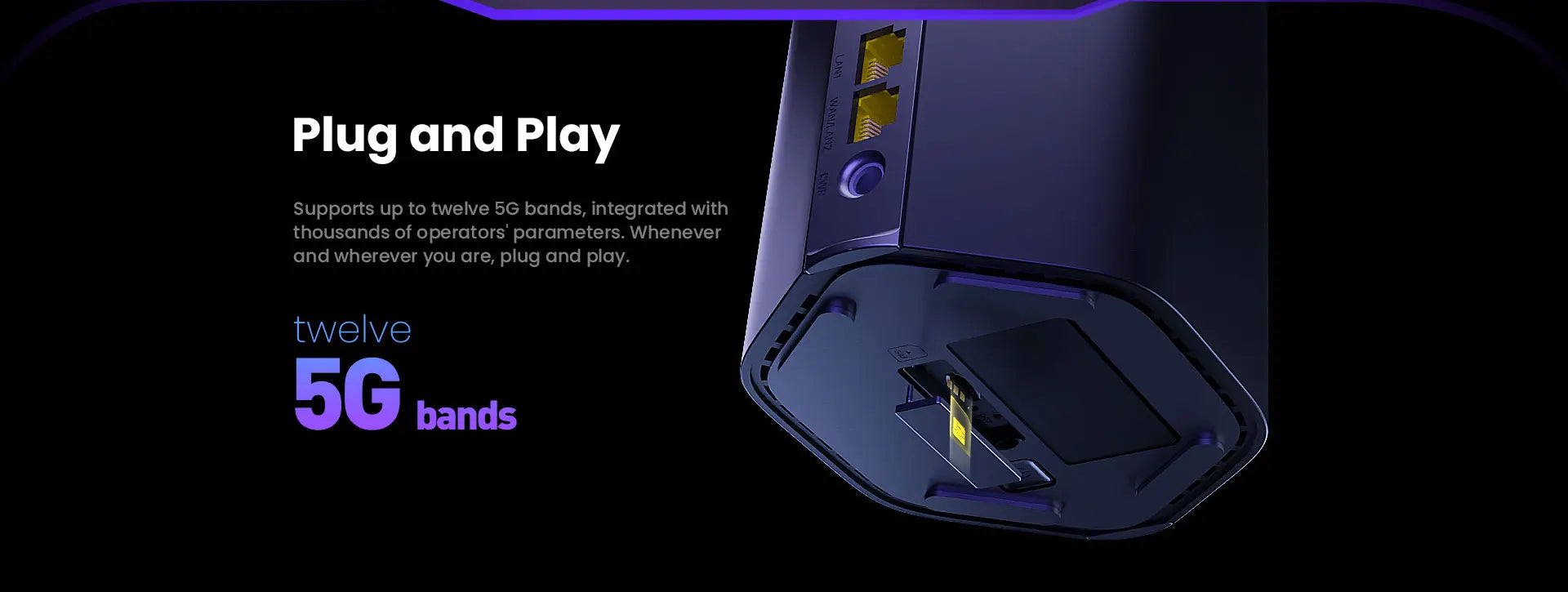

[ Plug and Play ] Supports up to twelve 5G bands, integrated with thousands of operators' parameters. Whenever and wherever you are, plug and play.

[ Easy Mesh ] 5G03 is adapting Easy Mesh system. With up to 8 devices and beamforming tech, 5G03 is covering your whole home WiFi. You can setup your network freely and easily.

[ Intelligent Match ] Using Band Steering tech, 5G03 can switch between 2.4 GHz and 5GHz WiFi to suit your devices smartly, always providing stable signals and wonderful surfing experiences.

Providing advanced tech for all pioneers like you with fantastic Internet experience. 5G03's deep black, delicate design of texture and highlight on the surface take our progressive geek philosophy to a new dimension.

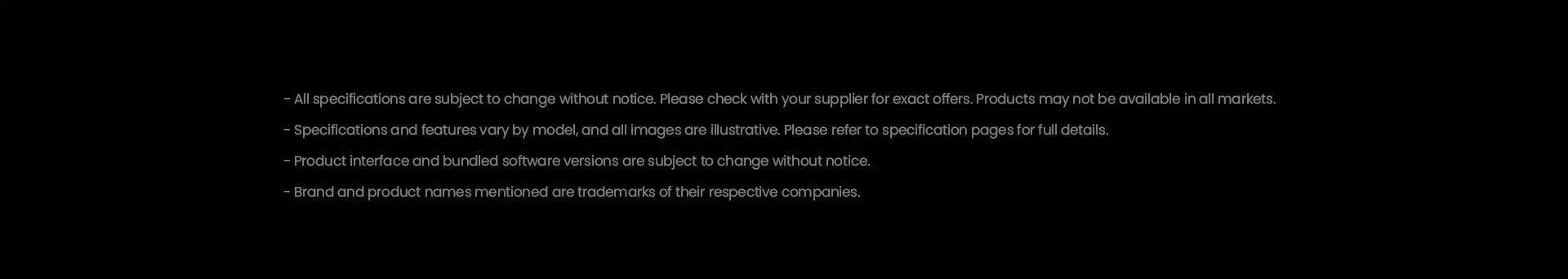

- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.

- Product interface and bundled software versions are subject to change without notice.

- Brand and product names mentioned are trademarks of their respective companies.
